SAFE RCX • Pressed Reducer

  • Reducer
  • With rubber seal
  • Galvanized steel
  • Male

Galvanized steel pressed reducer, with rubber seal.

Maximum diameter 315 mm.

Application

  • Spiral fitting to reduce duct from largest to smallest diameter with rubber seal.

Material

  • Galvanised Steel

Composition

  • Connection pieces upto Ø200 with air tightness class D to EN 12237
  • Connection pieces larger than Ø200 with air tightness class C to EN 12237.
  • The air tightness class is also determined by the installation.

Order Example

  • SAFE RCX 250 200

Explanation :

SAFE RCX = Type of reducer

250 = Largest diameter (D)

200 = Smallest diameter (d)

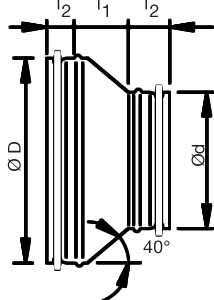

Dimensions

⌀D [mm]⌀d [mm]l1 [mm]l2 [mm][kg]
1008018400.2
1258030400.3
12510023400.3
15010040400.4
15012525400.3
16010045400.4
16012528400.4
16015018400.4
20010073400.6
20012553400.6
20015038400.5
20016033400.5
250125200401
25015065400.9
25016065400.9
25018070400.9
25020038400.8
300150165601.8
300160100601.7
300180135601.8
30020078601.5
30025045601.4
